PSIsafe User Guide: Imageman Module

version 12.2.x

Download Pending

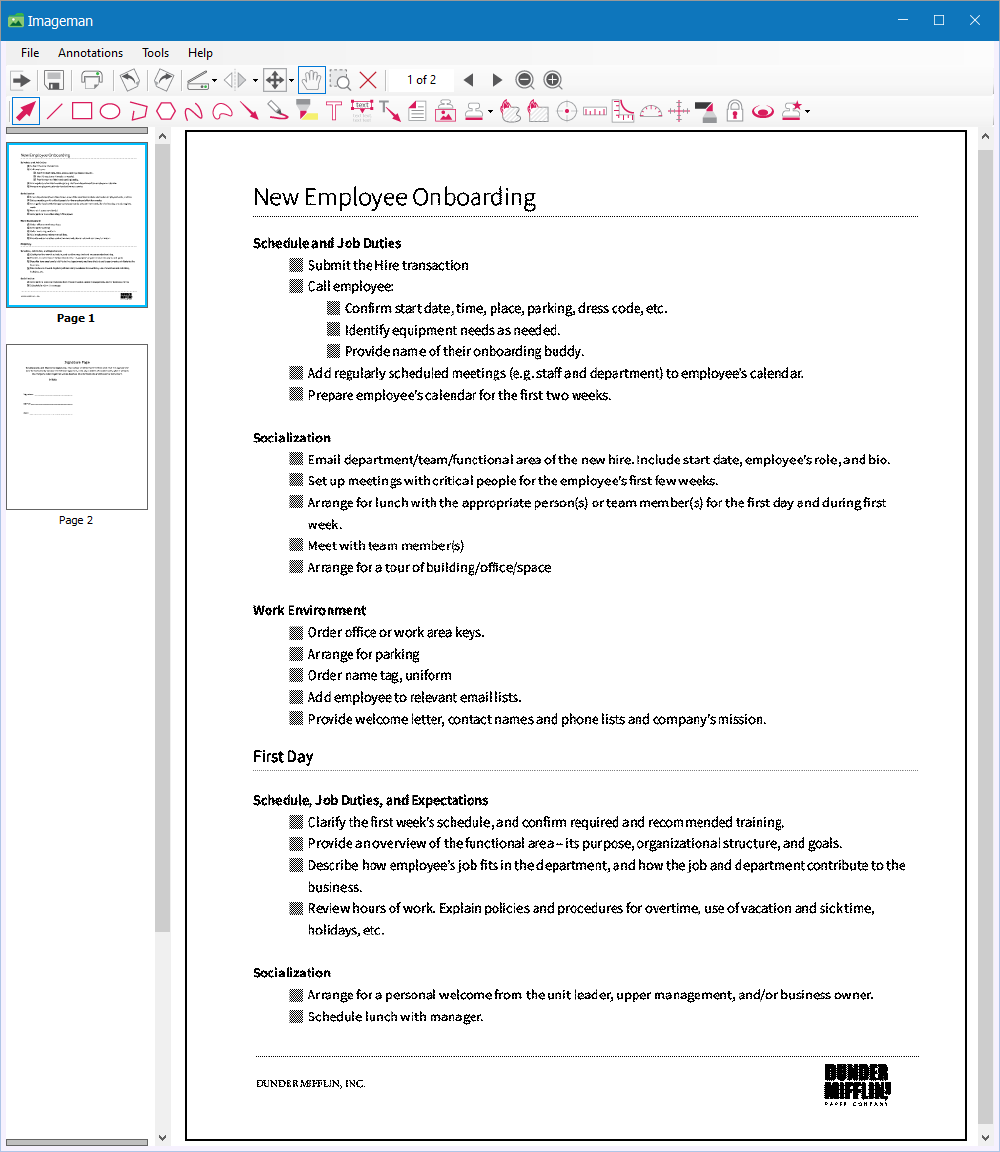

Overview

This following guide is an in-depth reference for the built-in Imageman module that comes packaged with the PSIsafe Client.

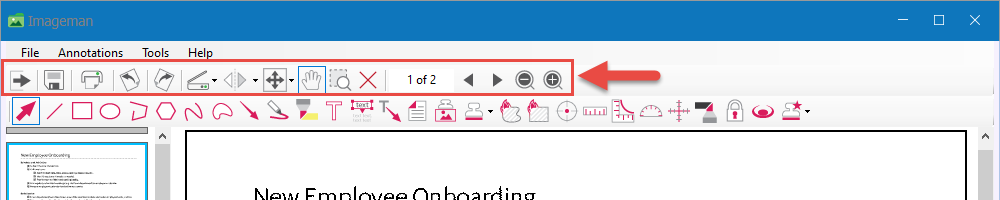

Main Toolstrip



Icon	Function Name	Function Description
	Exit	Exits the Imageman module.
	Save	Saves the current document with any edits made.
	Print	Prints the current document.
	Rotate Left / Right	Rotates the page of the current document or image left or right.
	Scan Insert Append Rescan Page	This function allows users to scan a new page and then either: Insert the scanned page page before the currently selected page Append the scanned page after the currently selected page Rescan the currently selected page
	Flip Vertical / Horizontal	Flips the currently selected page of the document into a vertical or horizontal orientation.
	Zoom Level Stretch Fit Fit Width Normal Fit Always	Set the zoom level between standard zoom options depending on your unique preferences.
	Pan	Pan around the current page of the document.
	ZoomTo	Use your mouse after selecting this function to highlight an area and zoom to that location.
	Delete Page	Delete the currently selected page.
	Page Navigation	Navigate between pages using the arrows, and see the current page number out of total pages.
	Zoom In / Out	Zoom in or out on left click once this function is selected.

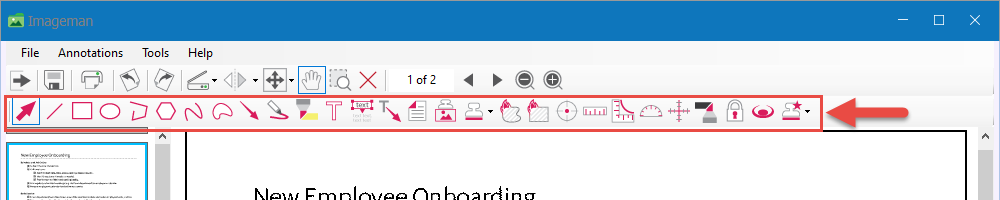

Annotation Toolstrip



Note: You must select Annotations > Enabled and see the checkbox to the left of it in order to see this toolbar.



For more information on annotations, see Unlocking PSIsafe: Using Custom Stamps and Annotations to Improve Workflow for more information.



File



Save - Saves the current document with any edits made.

Print - Print the current document.

Exit - Exit the Imageman window.



Annotations



See Unlocking PSIsafe: Using Custom Stamps and Annotations to Improve Workflow for more information.



Enabled - Select this option and be sure the checkbox is displayed to the left of it to enable the Annotations Toolstrip.

Make Annotations Permanent

All Pages - (Shortcut: Ctrl+Q) Makes permanent the annotations you placed on all pages currently within Imageman by rasterizing and flattening the image. Do not use this function if you intent to print without annotations.

This Page - Makes permanent the annotations you placed on the currently selected page within Imageman by rasterizing and flattening the image. Do not use this function if you intent to print without annotations.

Set Default Annotation Properties - See Unlocking PSIsafe: Using Custom Stamps and Annotations to Improve Workflow for more information.

Custom Stamp Setup - See Unlocking PSIsafe: Using Custom Stamps and Annotations to Improve Workflow for more information.



Tools

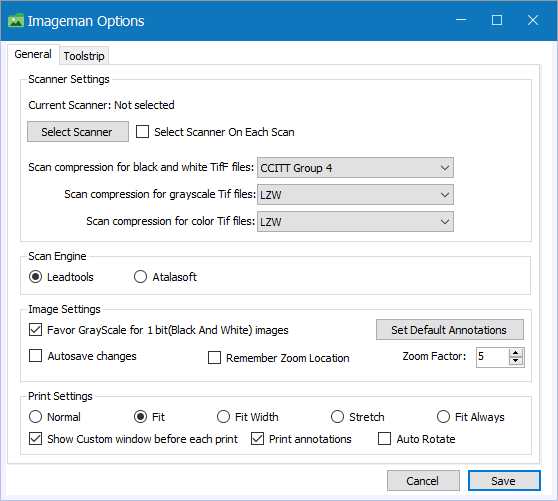

General Tab





Scanner Settings

Current Scanner: [Currently Selected Scanner] or [Not selected] - This field displays the currently selected scanner from the "Select Scanner" option below.

Select Scanner on Each Scan - Displays the scanner selection window before each scan. Do not use this feature if you plan on using the same scanner for each scan, and want to save time by avoiding this window.

Scan compression for black and white, grayscale, and color Tif files:

• Uncompressed - Does not compress Tif files of the chosen color type.
• CCITT Group 4 - Compresses scanned Tif files using the CCITT Group 4 compression method.
• LZW - Compresses scanned Tif files using the LZW compression method.



Scan Engine

Leadtools - Most scanner will use this scan engine by default. If you encounter issues scanning, try the Atalasoft scan engine option below. Otherwise, leave this setting as the default Leadtools option.

Atalasoft - A specialty scan engine that is required for some scanner manufacturers, such as Epson and Cannon.



Image Settings

Favor Grayscale for 1 bit (Black and White) images - This setting tells the scan engine to favor using the grayscale format instead of 1 bit black and white format when scanning documents whose dominant colors are black and white.

Autosave changes - Autosave the changes you make to an image throughout the editing process, and when you click the "exit" button.

Remember Zoom Location - When scanning a new document and re-entering the Imageman module, the zoom location last used will be automatically loaded.

Zoom Factor - Determine the zoom factor of the Remember Zoom Location function above.

Set Default Annotations - Use this window to set the default annotations used. For more information see Unlocking PSIsafe: Using Custom Stamps and Annotations to Improve Workflow.



Print Settings

Specify the zoom setting that the printer should use when printing the document or page:

• Normal
• Fit
• Fit Width
• Stretch
• Fit Always

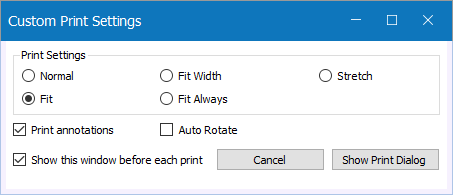

Show Custom Window before Each Print - Before printing, this will show the custom orint window, which allows users to specify each time whether they want to alter the specific print settings that are determined in this setting window. This also allows users to use the "Show Print Dialog" option to bring up the Windows Printer interface for additional customization and driver settings alterations.





Print Annotations - Print the annotations placed on this document or page.

Auto Rotate - Attempt to automatically rotate pages that are not in the default portrait orientation.

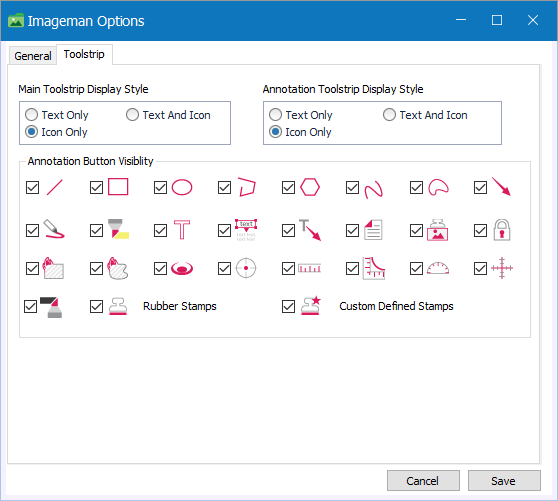

Toolstrip Tab





Main Toolstrip Display Style - Choose the display style you prefer for the main toolstrip buttons in the Imageman window, varying between text only, icon only, or both.





Annotation Toolstrip Display Style -Choose the display style you prefer for the annotation toolstrip buttons in the Imageman window, varying between text only, icon only, or both.





Note: You must select Annotations > Enabled and see the checkbox to the left of it in order to see this toolbar.



Annotation Button Visibility - Select which icons you wish to display on the Annotation Toolstrip interface element.



See Unlocking PSIsafe: Using Custom Stamps and Annotations to Improve Workflow for more information.



Help



About Imageman - This displays the Imageman version.
