[Legacy] DataStorm Fusion Migration Configuration

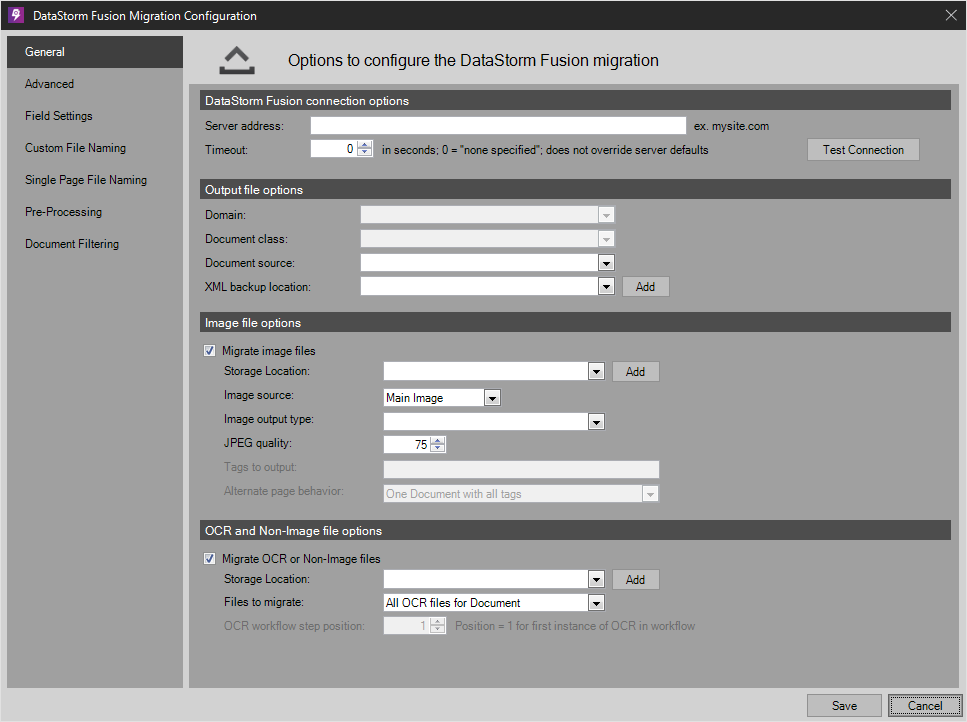

Migration Settings Tab

DataStorm Fusion Server Information

Server Name

Enter the URL of the Fusion web server. Example: www.myserver.com

Timeout

Enter the number of seconds you want the server to wait before aborting your post operation (0 = no timeout; max = 90). NOTE: Having a setting of "0" does not overwrite the server defaults.

Output File Options

Domain

Select the domain. This will enable and populate the Document Class drop box. NOTE: New domains cannot be added.

Document Class

Select the domain classification for your document type. NOTE: New classifications cannot be added.

Document Source

When a document is posted, it can come from one of two sources:

• Image Files
• OCR or Non-image files

XML Backup Location

Using this migration produces an XML file that is posted directly to the Fusion web site. Set this storage location to store a copy of this XML file for your records.

Image File Options

Migrate Image Files

Select Migrate Image Files to output the image files (i.e. Tiff, GIF, JPEG, etc.).

Image Source

Select the Image Source:

• Main Image – Image you see within the capture viewer
• Original Image – Only available if option on General Step (Part 2) is selected (this image is not modified by Image Processing)
• Alternate Images – Alternate images can be created at various times during the workflow (IE Image Processing: Crop)

Storage Location

Select Storage Location by choosing a pre-defined location or configuring a new one.

Image Output Type

Select from one of the following:

• Multi-Page Tiff Image
• Single Page Tiff Images
• Single Page JPEG Images
• Single Page JPEG 2000 Images
• Single Page BMP Images
• Single Page GIF Images
• Single Page PNG Images
• Multi-Page PDF (Image Only)
• Single Page PDFs (Image Only)

JPEG Quality

The default is 75 and is a good blend between quality and size. Raising the number will increase size and may increase the quality of the file. This setting affects Color, Grayscale and JPEG files only.

Tags to Output

When Alternate Images are selected as the Image Source, user can specify the image tag here. Only alternate images with the matching tag will be outputted. NOTE: Separate multiple tags using commas.

Alt. Page Behavior

Select Alt. Page Behavior: One Document with all tags, or One Document with each tag.

OCR and Non-Image File Options

Migrate OCR or Non-Image Files

This is for files created in the OCR module.

Storage Location

Select Storage Location by choosing a pre-defined location or configuring a new one.

Files to Migrate

Select from one of the following:

• All OCR Files for Document
• Single OCR File by workflow position
• OCR Files by file tags
• Non-Image source file

Tags to Output

When OCR Files by file tags is selected, only files with matching image tags will be outputted. NOTE: Separate multiple tags using commas.

Shared File Options

File Directory Structure

Select the desired directory structure from the following options:

• All Files in Storage Location
• All Files in Storage Location\Batch Folder
• Output File in Storage Location; Document files in Storage Location\Batch Folder
• Output File in Storage Location; Document files in Storage Location\Batch Folder\Capture Folder

Duplicate Image/OCR File Behavior

When the program detects that it is about to create a duplicate Image/OCR file the user can select from the following behavior options: Increment duplicate names (e.g.: 000001.tif, 000001_1.tif, 000001_2.tif), Overwrite existing file, Use existing file, or Stop Migrating.

Single Page Output Options

Single page output options are only used if single page output is selected in image file options.

Storage Option

Select to output image files “In Document Name subfolder within Document output location” or just “In Document output location”.

Naming Option

Select format by which the files are named.

Other Options

The user may wish to execute another windows application as a part of this migration. In order to accomplish this, the user must configure the following:

Application to Launch

Select the windows executable to launch.

Application Arguments

Supply any command line arguments, if any. These are supplied by the executable’ developer.

Launch Timing

The user can choose between the following timing options to launch the executable:

• Launch application after each Batch is migrated
• Launch application after all selected Batches are migrated

Common Tabs

• Field Settings
• Custom File Naming
• Single Page File Naming
• Pre-Processing
